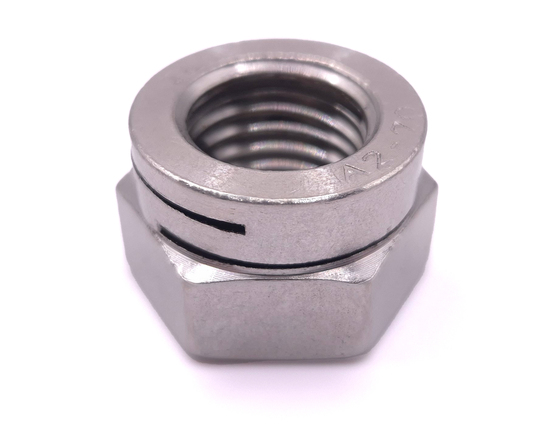

M8 ESL ALL-METAL SELF LOCKING NUT (NFE 25-411) A2-70 STAINLESS STEEL
Part No. AESLLOCKNUT08
£201.00 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 100 + | £201.00 |
| 500 + | £190.95 |
| 1000 + | £181.40 |
| 2500 + | £172.36 |
| 5000 + | £161.70 |
A minimum order quantity of 100 applies to this productThis product must be ordered in multiples of 100, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | h (nom) | m (nom) |
|---|---|---|---|---|
| M2 | 0.40 | 4.00-3.82 | 4.50 | 2.30 |
| M2.5 | 0.45 | 5.00-4.82 | 4.50 | 2.30 |
| M3 | 0.50 | 5.50-5.32 | 4.50 | 2.50 |
| M4 | 0.70 | 7.00-6.78 | 5.30 | 2.60 |
| M5 | 0.80 | 8.00-7.78 | 6.30 | 3.00 |
| M6 | 1.00 | 10.00-9.78 | 7.00 | 3.60 |
| M7 | 1.00 | 11.00-10.73 | 8.10 | 4.80 |
| M8 | 1.25 | 13.00-12.73 | 8.80 | 4.80 |
| M10 | 1.50 | 16.00-15.73 | 11.00 | 6.00 |
| M12 | 1.75 | 18.00-17.67 | 13.00 | 7.20 |
| M14 | 2.00 | 21.00-20.67 | 15.00 | 8.40 |
| M16 | 2.00 | 24.00-23.67 | 17.00 | 9.50 |
| M18 | 2.50 | 27.00-26.16 | 19.50 | 11.50 |
| M20 | 2.50 | 30.00-29.16 | 21.00 | 12.00 |
| M22 | 2.50 | 34.00-33.00 | 21.50 | 12.50 |
| M24 | 3.00 | 36.00-35.00 | 25.50 | 15.40 |
| M27 | 3.00 | 41.00-40.00 | 28.00 | 17.00 |
| M30 | 3.50 | 46.00-45.00 | 31.50 | 18.50 |
| M33 | 3.50 | 50.00-49.00 | 32.00 | 18.70 |
| M36 | 4.00 | 55.00-53.80 | 34.50 | 19.50 |
| M39 | 4.00 | 60.00-58.80 | 37.00 | 20.50 |
| M42 | 4.50 | 65.00-63.10 | 39.50 | 23.00 |
| M45 | 4.50 | 70.00-68.10 | 43.00 | 24.00 |
| M48 | 5.00 | 75.00-73.10 | 46.00 | 25.00 |
