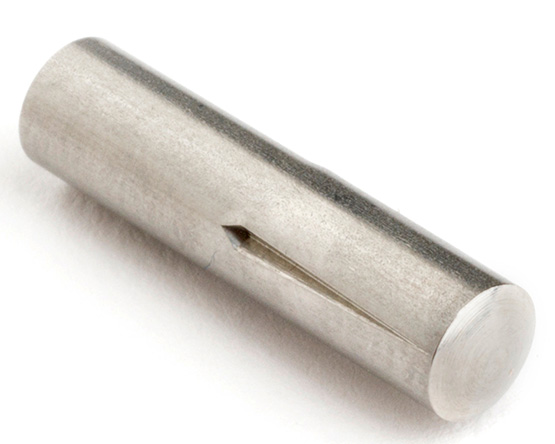

8 X 26 GROOVED PIN HALF LENGTH REVERSE TAPER (GP4) DIN 1474 A1 STAINLESS STEEL

8 X 26 GROOVED PIN HALF LENGTH REV. TAPER (GP4) DIN 1474 A1
8 X 26 GROOVED PIN HALF LENGTH REV. TAPER (GP4) DIN 1474 A1
8 X 26 GROOVED PIN HALF LENGTH REV. TAPER (GP4) DIN 1474 A1
PDF Icon
Part No. A14740826
£143.19 (exc VAT) per 100
Quantity BreaksPrice per 100
100 +£143.19
200 +£136.03
400 +£129.23
1000 +£122.79
2000 +£115.20
0 in stock:
+600 21 days
SHOP FOR MORE HALF LENGTH REVERSE TAPER GROOVED PINS DIN 1474

Further Information

Diameter (d1)Tol.d2a
1.5h91.68-1.600.20
2.0h92.20-2.100.25
2.5h92.75-2.55-0.30
3.0h93.30-3.050.40
4.0h114.35-4.100.50
5.0h115.35-5.100.63
6.0h116.40-6.100.80
8.0h118.45-8.151.00
10h1110.50-10.151.20
