Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

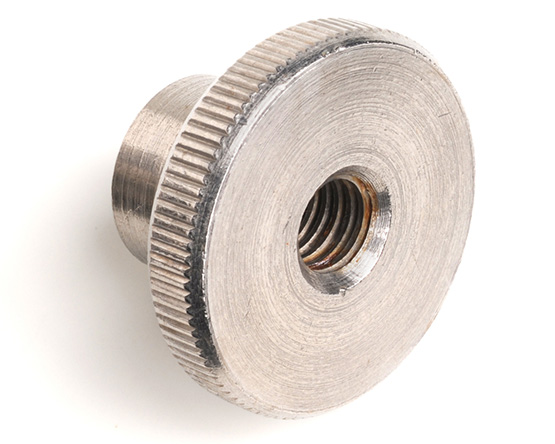

M8 KNURLED THUMB NUT HIGH TYPE DIN 466 A1 STAINLESS STEEL
Part No. A46608
£176.22 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £176.22 |
| 50 + | £167.41 |
| 100 + | £159.04 |
| 250 + | £151.11 |
| 500 + | £141.77 |
Further Information
| Diameter (d) | Pitch | dk | ds | h | k |
|---|---|---|---|---|---|
| M2 | 0.40 | 9.29-8.71 | 4.50-4.20 | 5.3 | 2.0 |
| M2.5 | 0.45 | 11.35-10.65 | 5.00-4.70 | 6.5 | 2.5 |
| M3 | 0.50 | 12.35-11.65 | 6.00-5.70 | 7.5 | 2.5 |
| M4 | 0.70 | 16.35-15.65 | 8.00-7.64 | 9.5 | 3.5 |
| M5 | 0.80 | 20.42-19.58 | 10.00-9.64 | 11.5 | 4.0 |
| M6 | 1.00 | 24.42-23.58 | 12.00-11.57 | 15.0 | 5.0 |
| M8 | 1.25 | 30.42-29.58 | 16.00-15.57 | 18.0 | 6.0 |
| M10 | 1.50 | 36.50-35.50 | 20.00-19.48 | 23.0 | 8.0 |
