Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

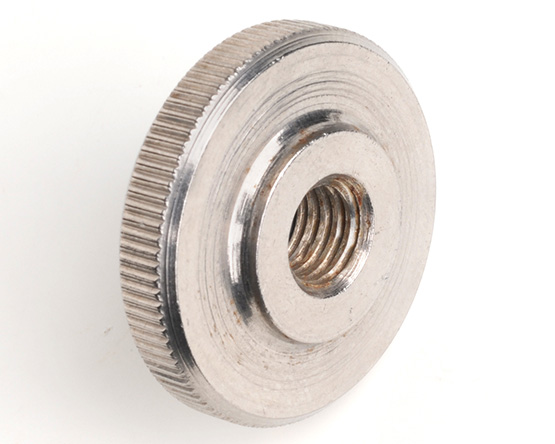

M8 KNURLED THUMB NUT THIN TYPE DIN 467 A1 STAINLESS STEEL
Part No. A46708
£128.26 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £128.26 |
| 50 + | £121.85 |
| 100 + | £115.75 |
| 250 + | £109.98 |
| 500 + | £103.19 |
Further Information
| Diameter (d) | Pitch | dk | ds | h | k |
|---|---|---|---|---|---|
| M2.5 | 0.45 | 11.35-10.65 | 5.00-4.70 | 3 | 2.5 |
| M3 | 0.50 | 12.35-11.65 | 6.00-5.70 | 3 | 2.5 |
| M4 | 0.70 | 16.35-15.65 | 8.00-7.64 | 4 | 3.5 |
| M5 | 0.80 | 20.42-19.58 | 10.00-9.64 | 5 | 4.0 |
| M6 | 1.00 | 24.42-23.58 | 12.00-11.57 | 6 | 5.0 |
| M8 | 1.25 | 30.42-29.58 | 16.00-15.57 | 8 | 6.0 |
| M10 | 1.50 | 36.50-35.50 | 20.00-19.48 | 10 | 8.0 |
