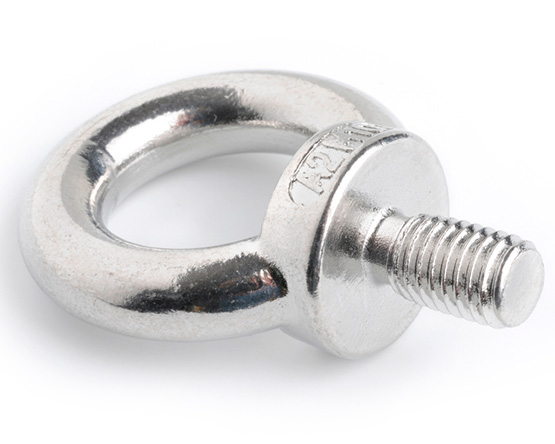

M8 LIFTING EYE BOLT DIN 580 (DROP-FORGED) A2 STAINLESS STEEL
Part No. A58008F
£346.38 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £346.38 |
| 50 + | £329.06 |
| 100 + | £312.61 |
| 250 + | £297.02 |
| 500 + | £278.66 |
A minimum order quantity of 25 applies to this productThis product must be ordered in multiples of 25, quantities will be rounded up as you add them.
Further Information
| Diameter (d1) | Pitch | d2 | d3 | d4 | h | e | L |
|---|---|---|---|---|---|---|---|
| M6 | 1.00 | 16 | 27 | 16 | 31 | 6 | 11.0 |
| M8 | 1.25 | 20 | 36 | 20 | 36 | 6 | 13.0 |
| M10 | 1.50 | 25 | 45 | 25 | 45 | 8 | 17.0 |
| M12 | 1.75 | 30 | 54 | 30 | 53 | 10 | 20.5 |
| M16 | 2.00 | 35 | 63 | 35 | 62 | 12 | 27.0 |
| M20 | 2.50 | 40 | 72 | 40 | 71 | 14 | 30.0 |
| M24 | 3.00 | 50 | 90 | 50 | 90 | 18 | 36.0 |
| M27 | 3.00 | 65 | 108 | 60 | 109 | 22 | 45.0 |
| M30 | 3.50 | 65 | 108 | 60 | 109 | 22 | 45.0 |
| M36 | 4.00 | 75 | 126 | 70 | 128 | 26 | 54.0 |
