Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

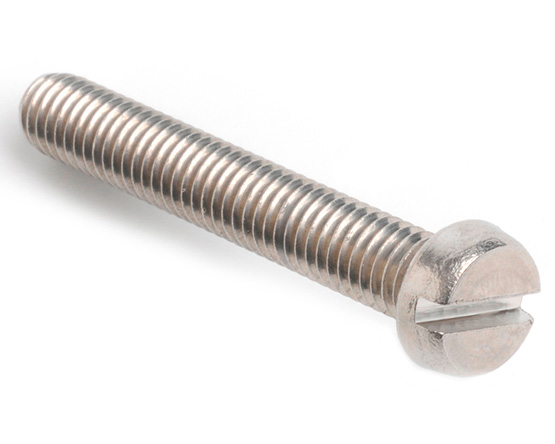

M1.2 X 6 SLOT CHEESE MACHINE SCREW DIN 84 A2 STAINLESS STEEL
Part No. A8401206
£5.80 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 500 + | £5.80 |
| 1000 + | £5.51 |
| 2000 + | £5.23 |
| 5000 + | £4.97 |
| 10000 + | £4.67 |
A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | dk | k | n (nom) | t (min) |
|---|---|---|---|---|---|
| M1.0 | 0.25 | 2.00-1.86 | 0.70-0.56 | 0.25 | 0.25 |
| M1.2 | 0.25 | 2.30-2.16 | 0.80-0.66 | 0.30 | 0.30 |
| M1.4 | 0.30 | 2.60-2.46 | 0.90-0.76 | 0.30 | 0.40 |
| M1.6 | 0.35 | 3.00-2.86 | 1.00-0.86 | 0.40 | 0.45 |
| M1.7 | 0.35 | 3.20-3.06 | 1.20-1.06 | 0.40 | 0.50 |
| M2 | 0.40 | 3.80-3.62 | 1.30-1.16 | 0.50 | 0.60 |
| M2.3 | 0.40 | 4.40-4.22 | 1.50-1.36 | 0.55 | 0.65 |
| M2.5 | 0.45 | 4.50-4.32 | 1.60-1.46 | 0.60 | 0.70 |
| M3 | 0.50 | 5.50-5.32 | 2.00-1.86 | 0.80 | 0.85 |
| M3.5 | 0.60 | 6.00-5.82 | 2.40-2.26 | 1.00 | 1.00 |
| M4 | 0.70 | 7.00-6.78 | 2.60-2.46 | 1.20 | 1.10 |
| M5 | 0.80 | 8.50-8.28 | 3.30-3.12 | 1.20 | 1.30 |
| M6 | 1.00 | 10.00-9.78 | 3.90-3.60 | 1.60 | 1.60 |
| M8 | 1.25 | 13.00-12.73 | 5.00-4.70 | 2.00 | 2.00 |
| M10 | 1.50 | 16.00-15.73 | 6.00-5.70 | 2.50 | 2.40 |
