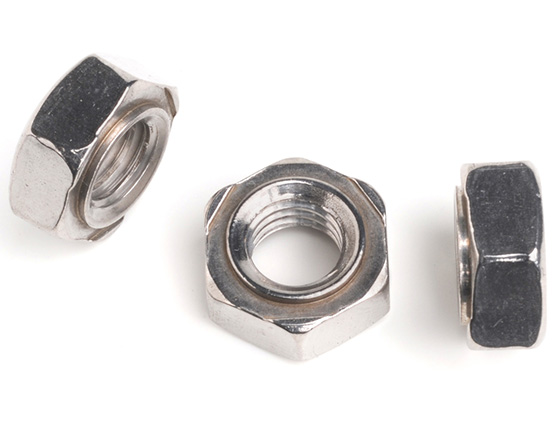

M8 HEXAGON WELD NUT DIN 929 A2 STAINLESS STEEL
Part No. A92908
£9.94 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £9.94 |
| 400 + | £9.44 |
| 800 + | £8.97 |
| 2000 + | £8.52 |
| 4000 + | £8.00 |
A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | m (h14) | s (h13) | d2 (d11) | h1 | h2 |
|---|---|---|---|---|---|---|
| M3 | 0.50 | 3.0 | 7.5 | 4.5 | 0.55-0.45 | 0.25-0.15 |
| M4 | 0.70 | 3.5 | 9.0 | 6.0 | 0.65-0.55 | 0.35-0.25 |
| M5 | 0.80 | 4.0 | 10 | 7.0 | 0.70-0.60 | 0.40-0.30 |
| M6 | 1.00 | 5.0 | 11 | 8.0 | 0.75-0.60 | 0.40-0.30 |
| M8 | 1.25 | 6.5 | 14 | 10.5 | 0.90-0.75 | 0.50-0.35 |
| M10 | 1.50 | 8.0 | 17 | 12.5 | 1.15-0.95 | 0.65-0.50 |
| M12 | 1.75 | 10.0 | 19 | 14.8 | 1.40-1.25 | 0.80-0.60 |
| M16 | 2.00 | 13.0 | 24 | 18.8 | 1.80-1.60 | 1.00-0.80 |
