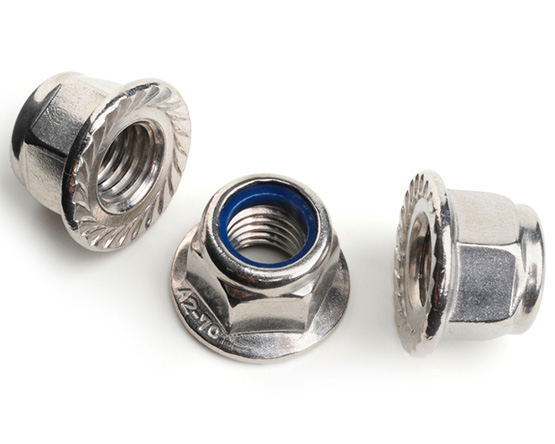

M5 NYLON INSERT SERRATED FLANGE NUT DIN 6926 A2 STAINLESS STEEL

Part No. A692605

£7.86 (exc VAT) per 100

Quantity Breaks	Price per 100
500 +	£7.86
1000 +	£7.47
2000 +	£7.09
5000 +	£6.74
10000 +	£6.32

A minimum order quantity of 500 applies to this productThis product must be ordered in multiples of 500, quantities will be rounded up as you add them.

SHOP FOR MORE NYLON INSERT SERRATED FLANGE NUTS DIN 6926

Further Information

Diameter (d)	Pitch	s	dc (max)	m1	m (min)	k
M3	0.50	5.50-5.32	8.00	1.70	3.70	5.10-4.74
M4	0.70	7.00-6.78	10.00	1.90	4.20	6.10-5.74
M5	0.80	8.00-7.78	11.80	2.20	4.70	7.10-6.74
M6	1.00	10.00-9.78	14.20	3.10	5.70	9.10-8.74
M8	1.25	13.00-12.73	17.90	4.50	7.60	11.10-10.67
M10	1.50	15.00-14.73	21.80	5.50	9.60	13.50-13.07
M12	1.75	18.00-17.73	26.00	6.70	11.60	16.10-15.67
