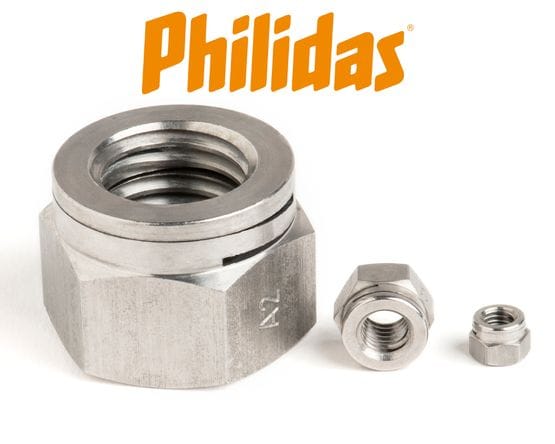

M6 PHILIDAS TURRET NUT (6MCP/2S00) A2-70 STAINLESS STEEL
Part No. APHILT06
£89.26 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £89.26 |
| 400 + | £84.80 |
| 800 + | £80.56 |
| 2000 + | £76.54 |
| 4000 + | £71.81 |
A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | Pitch | s | e (min) | m (nom) | b (nom) | Applied Torque (Nm) | Proof Load (N) | Clamp Load (N) |
|---|---|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 6.01 | 2.5 | 4.8 | * | * | * |
| M4 | 0.70 | 7.00-6.78 | 7.66 | 3.3 | 5.6 | 2.30 | * | * |
| M5 | 0.80 | 8.00-7.78 | 8.79 | 3.9 | 6.8 | 4.70 | 9500 | 5000 |
| M6 | 1.00 | 10.00-9.78 | 11.05 | 5.0 | 8.5 | 7.95 | 13500 | 7072 |
| M8 | 1.25 | 13.00-12.73 | 14.38 | 6.0 | 10.5 | 19.3 | 24900 | 12880 |
| M10 | 1.50 | 17.00-16.73 | 18.90 | 7.6 | 13 | 38.25 | 39400 | 20400 |
| M12 | 1.75 | 19.00-18.67 | 21.10 | 8.5 | 15 | 66.50 | 59000 | 29680 |
| M16 | 2.00 | 24.00-23.67 | 26.75 | 12.0 | 19.5 | 166 | 109900 | 55280 |
| M20 | 2.50 | 30.00-29.16 | 32.95 | 15.5 | 24 | 324.50 | 176400 | 86400 |
| M24 | 3.00 | 36.00-35.00 | 39.55 | 19.0 | 29 | 558.50 | 254200 | 124000 |
