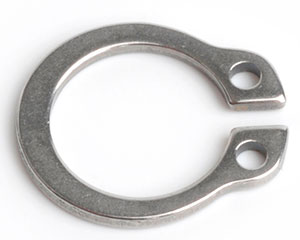

6MM EXTERNAL CIRCLIP FOR SHAFTS DIN 471 1.4122 STAINLESS STEEL

Name: 6MM EXTERNAL CIRCLIP FOR SHAFTS DIN 471 1.4122 STAINLESS STEEL
SKU: A47106
Price: 11.47 GBP
Availability: InStock

Part No. A47106

£11.47 (exc VAT) per 100

SHOP FOR MORE EXTERNAL CIRCLIPS DIN 471

Shaft Diameter (d1)	d5 MIN	d3	a (max)	b	d4
3	1	2.7	1.9	0.8	7.0
4	1	3.7	2.2	0.9	8.6
5	1	4.7	2.5	1.1	10.3
6	1.2	5.6	2.7	1.3	11.7
7	1.2	6.5	3.1	1.4	13.5
8	1.2	7.4	3.2	1.5	14.7
9	1.2	8.4	3.3	1.7	16.0
10	1.5	9.3	3.3	1.8	17.0
11	1.5	10.2	3.3	1.8	18.0
12	1.7	11.0	3.3	1.8	19.0
13	1.7	11.9	3.4	1.9	20.2
14	1.7	12.9	3.5	2.1	21.4
15	1.7	13.8	3.6	2.2	22.6
16	1.7	14.7	3.7	2.2	23.8
17	1.7	15.7	3.8	2.3	25.0
18	2	16.5	3.9	2.5	26.2
19	2	17.5	3.9	2.5	27.2
20	2	18.5	4.0	2.6	28.4
21	2	19.5	4.1	2.7	29.6
22	2	20.5	4.2	2.8	30.8
23	2	21.4	4.3	2.9	*
24	2	22.2	4.4	3.0	33.2
25	2	23.2	4.4	3.0	34.2
26	2	24.2	4.4	3.1	35.5
27	2	25.1	4.6	3.1	*
28	2	25.9	4.7	3.2	37.9
29	2	26.9	4.8	3.4	39.1
30	2	27.9	5.0	3.5	40.5
32	2.5	29.6	5.2	3.6	43.0
34	2.5	31.5	5.4	3.8	45.4
35	2.5	32.2	5.6	3.9	46.8
36	2.5	33.2	5.6	4.0	47.8
37	2.5	34.2	5.7	4.1	*
38	2.5	35.2	5.8	4.2	50.2
39	2.5	36	5.9	4.3	*
40	2.5	36.5	6	4.4	52.6
42	2.5	38.5	6.5	4.5	55.7
45	2.5	41.5	6.7	4.7	59.1
47	2.5	43.5	6.8	4.9	*
48	2.5	44.5	6.9	5.0	62.5
50	2.5	45.8	6.9	5.1	64.5
52	2.5	47.8	7	5.2	66.7
55	2.5	50.8	7.2	5.4	70.2
60	2.5	55.8	7.4	5.8	75.6
62	2.5	57.8	7.5	6.0	77.8
65	3	60.8	7.8	6.3	81.4
70	3	65.5	8.1	6.6	87.0
75	3	70.5	8.4	7.0	92.7
80	3	74.5	8.6	7.4	98.1
85	3.5	79.5	8.7	7.8	103.3
90	3.5	84.5	8.8	8.2	108.5
95	3.5	89.5	9.4	8.6	114.8
100	3.5	94.5	9.6	9.0	120.2
105	3.5	98	9.9	9.3	125.8
110	3.5	103	10.1	9.6	131.2
115	3.5	108	10.6	9.8	137.3
120	3.5	113	11	10.2	143.1
125	4	118	11.4	10.4	149
130	4	123	11.6	10.7	154.4
135	4	128	11.8	11	159.8
140	4	133	12	11.2	165.2
145	4	138	12.2	11.5	170.6
150	4	142	13	11.8	177.3
