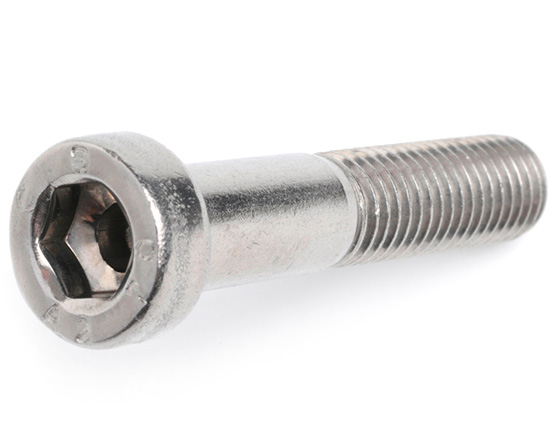

M6 X 16 LOW HEAD SOCKET CAP SCREW WITH PILOT RECESS DIN 6912 A2-70 STAINLESS STEEL

Part No. A69120616

£10.82 (exc VAT) per 100

Quantity Breaks	Price per 100
200 +	£10.82
400 +	£10.28
800 +	£9.77
2000 +	£9.28
4000 +	£8.70

A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.

SHOP FOR MORE LOW HEAD SOCKET CAP SCREWS WITH PILOT RECESS DIN 6912

Further Information

Diameter (d)	Pitch	dk	k	s (nom)	b (max)
M3	0.50	5.50-5.28	2.00-1.86	2.0	12
M4	0.70	7.00-6.78	2.80-2.66	3.0	14
M5	0.80	8.50--8.28	3.50-3.32	4.0	16
M6	1.00	10.00-9.78	4.00-3.82	5.0	18
M8	1.25	13.00-12.73	5.00-4.82	6.0	22
M10	1.50	16.00-15.73	6.50-6.28	8.0	26
M12	1.75	18.00-17.73	7.50-7.28	10	30
M16	2.00	24.00-23.67	10.00-9.78	14	38
M20	2.5	30.00-29.67	12.00-11.73	17	46
M24	3.00	36.00-35.61	14.00-13.73	19	54
