Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

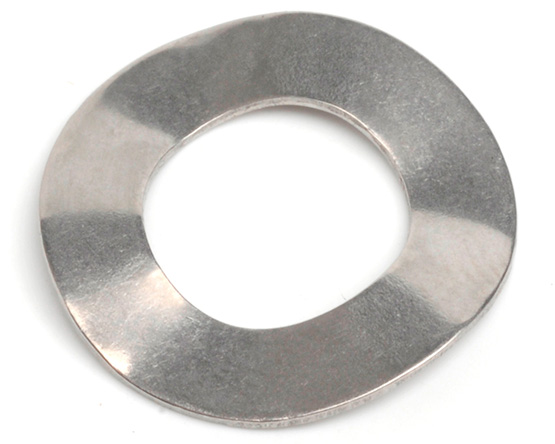

M2.5 CRINKLE WASHER BS4463 A2 STAINLESS STEEL
Part No. A4463025
£2.24 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 1000 + | £2.24 |
| 2000 + | £2.13 |
| 4000 + | £2.02 |
| 10000 + | £1.92 |
| 20000 + | £1.80 |
A minimum order quantity of 1000 applies to this productThis product must be ordered in multiples of 1000, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | d2 | s | h |
|---|---|---|---|---|
| M1.6 | 1.80-1.70 | 3.70-3.52 | 0.16 | 0.51-0.36 |
| M2 | 2.30-2.20 | 4.60-4.42 | 0.16 | 0.53-0.38 |
| M2.5 | 2.80-2.70 | 5.80-5.62 | 0.16 | 0.53-0.38 |
| M3 | 3.32-3.20 | 6.40-6.18 | 0.16 | 0.61-0.46 |
| M3.5 | 3.82-3.70 | 6.90-6.68 | 0.20 | 0.79-0.63 |
| M4 | 4.42-4.30 | 8.10-7.88 | 0.28 | 0.84-0.69 |
| M5 | 5.42-5.30 | 9.20-8.98 | 0.30 | 0.89-0.74 |
| M6 | 6.55-6.40 | 11.50-11.23 | 0.40 | 1.14-0.99 |
| M8 | 8.55-8.40 | 15.00-14.73 | 0.40 | 1.40-1.25 |
| M10 | 10.68-10.50 | 19.60-19.27 | 0.55 | 1.70-1.55 |
| M12 | 13.18-13.00 | 22.00-21.67 | 0.55 | 1.90-1.65 |
| M16 | 17.18-17.00 | 27.80-27.47 | 0.70 | 2.41-2.16 |
| M20 | 21.21-21.00 | 34.70-34.31 | 0.70 | 2.66-2.16 |
