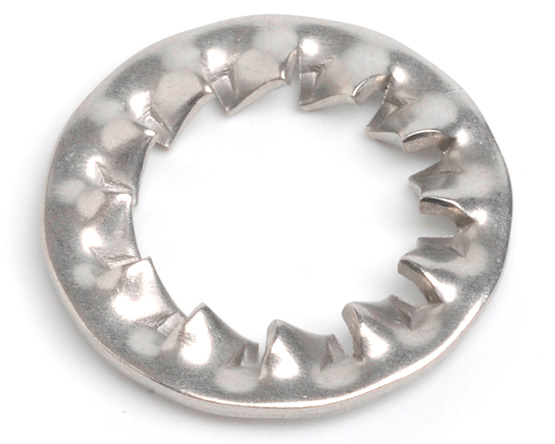

M20 INTERNAL TOOTH WASHER DIN 6798J A2 STAINLESS STEEL
Part No. A6798I20
£10.57 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 200 + | £10.57 |
| 400 + | £10.04 |
| 800 + | £9.54 |
| 2000 + | £9.06 |
| 4000 + | £8.50 |
A minimum order quantity of 200 applies to this productThis product must be ordered in multiples of 200, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | d2 | s | h | Teeth (min) |
|---|---|---|---|---|---|
| M2 | 2.34-2.20 | 4.50-4.20 | 0.3 | 3 x s1 | 7 |
| M2.5 | 2.84-2.70 | 5.50-5.20 | 0.4 | 3 x s1 | 7 |
| M3 | 3.38-3.20 | 6.00-5.70 | 0.4 | 3 x s1 | 7 |
| M3.5 | 3.88-3.70 | 7.00-6.64 | 0.5 | 3 x s1 | 8 |
| M4 | 4.48-4.30 | 8.00-7.64 | 0.5 | 3 x s1 | 8 |
| M5 | 5.46-5.30 | 10.00-9.64 | 0.6 | 3 x s1 | 8 |
| M6 | 6.62-6.40 | 11.00-10.57 | 0.7 | 3 x s1 | 9 |
| M7 | 7.62-7.40 | 12.50-12.07 | 0.8 | 3 x s1 | 10 |
| M8 | 8.62-8.40 | 15.00-14.57 | 0.8 | 3 x s1 | 10 |
| M10 | 10.77-10.50 | 18.00-17.57 | 0.9 | 3 x s1 | 12 |
| M12 | 13.27-13.00 | 20.50-19.98 | 1.0 | 3 x s1 | 12 |
| M14 | 15.27-15.00 | 24.00-23.48 | 1.0 | 3 x s1 | 14 |
| M16 | 17.27-17.00 | 26.00-25.48 | 1.2 | 3 x s1 | 14 |
| M18 | 19.33-19.00 | 30.00-29.48 | 1.4 | 3 x s1 | 14 |
| M20 | 21.33-21.00 | 33.00-32.38 | 1.4 | 3 x s1 | 16 |
| M22 | 23.33-23.00 | 36.00-35.38 | 1.5 | 3 x s1 | 16 |
| M24 | 25.33-25.00 | 38.00-37.38 | 1.5 | 3 x s1 | 16 |
| M27 | 28.33-28.00 | 44.00-43.38 | 1.6 | 3 x s1 | 18 |
| M30 | 31.39-31.00 | 48.00-47.38 | 1.6 | 3 x s1 | 18 |
