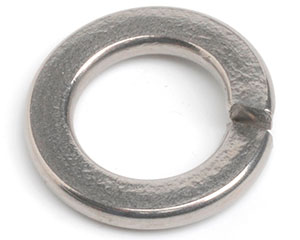

#2 MEDIUM SPLIT LOCKWASHER ASME B18.21.1 A2 STAINLESS STEEL

Part No. U127256

£0.99 (exc VAT) per 100

Quantity Breaks	Price per 100
1000 +	£0.99
2000 +	£0.94
4000 +	£0.89
10000 +	£0.85
20000 +	£0.80

A minimum order quantity of 1000 applies to this productThis product must be ordered in multiples of 1000, quantities will be rounded up as you add them.

SHOP FOR MORE MEDIUM SPLIT LOCKWASHERS ASME B18.21.1

Further Information

Size	a (min)	b (max)	ti + to / 2 (min)	w (min)
#0	0.062	0.137	0.017	0.020
#1	0.075	0.150	0.020	0.022
#2	0.088	0.172	0.020	0.035
#3	0.101	0.195	0.025	0.040
#4	0.114	0.209	0.025	0.040
#5	0.127	0.236	0.031	0.047
#6	0.141	0.250	0.031	0.047
#8	0.167	0.293	0.040	0.055
#10	0.193	0.334	0.047	0.062
#12	0.220	0.377	0.056	0.070
1/4	0.252	0.487	0.062	0.109
5/16	0.314	0.583	0.078	0.125
3/8	0.377	0.680	0.094	0.141
7/16	0.440	0.776	0.109	0.156
1/2	0.502	0.869	0.125	0.171
5/8	0.628	1.072	0.156	0.203
3/4	0.753	1.264	0.188	0.234
7/8	0.878	1.455	0.219	0.266
1"	1.003	1.647	0.250	0.297
1.1/8"	1.129	1.838	0.281	0.328
1.1/4"	1.254	2.028	0.312	0.359
1.3/8"	1.379	2.210	0.344	0.391
1.1/2"	1.504	2.409	0.375	0.422
