Standard Range: Metric M1.0 > M52, Inch Oun > 2"
-
E-CATALOGUE

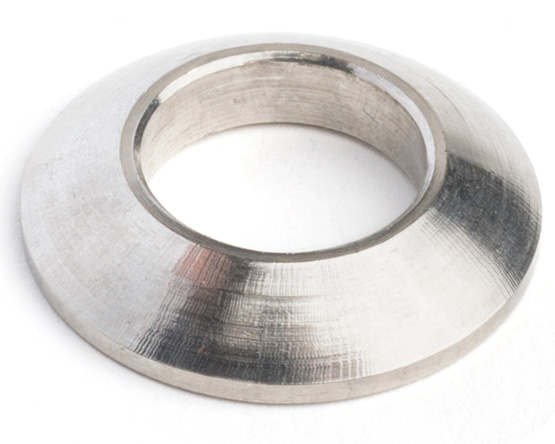

M30 (31,0) SPHERICAL WASHER DIN 6319C A2 STAINLESS STEEL
Part No. A6319C30
£470.56 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £470.56 |
| 50 + | £447.03 |
| 100 + | £424.68 |
| 250 + | £403.51 |
| 500 + | £378.57 |
Further Information
| Diameter (d) | d1 (h13) | d3 | f1 | h1 | h2 | r1 |
|---|---|---|---|---|---|---|
| M6 | 6.4 | 12 | 0.3 | 0.7 | 2.3 | 9 |
| M8 | 8.4 | 17 | 0.5 | 0.6 | 3.2 | 12 |
| M10 | 10.5 | 21 | 0.5 | 0.8 | 4.0 | 15 |
| M12 | 13 | 24 | 0.5 | 1.1 | 4.6 | 17 |
| M14 | 15 | 28 | 0.5 | 1.2 | 5.0 | 22 |
| M16 | 17 | 30 | 0.5 | 1.3 | 5.3 | 22 |
| M20 | 21 | 36 | 0.5 | 2.0 | 6.3 | 27 |
| M24 | 25 | 44 | 0.8 | 2.4 | 8.2 | 32 |
| M30 | 31 | 56 | 0.8 | 3.6 | 11.2 | 41 |
| M36 | 37 | 68 | 1.0 | 4.6 | 14 | 50 |
| M42 | 43 | 78 | 1.0 | 6.5 | 17 | 58 |
| M48 | 50 | 92 | 1.0 | 8.0 | 21 | 67 |
