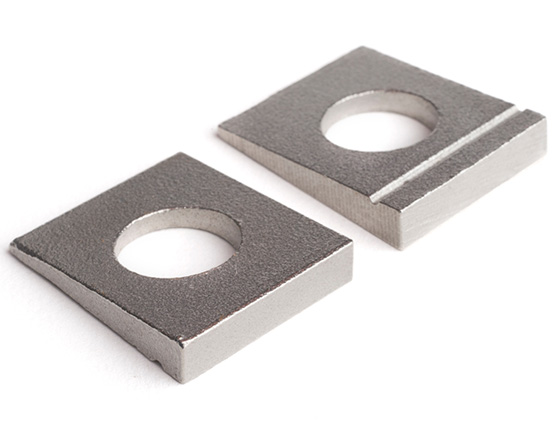

M16 (17,5) SQUARE TAPER WASHER FOR U-SECTION DIN 434 A2 STAINLESS STEEL
Part No. A43416
£142.89 (exc VAT) per 100
| Quantity Breaks | Price per 100 |
|---|---|
| 25 + | £142.89 |
| 50 + | £135.75 |
| 100 + | £128.96 |
| 250 + | £122.53 |
| 500 + | £114.96 |
A minimum order quantity of 25 applies to this productThis product must be ordered in multiples of 25, quantities will be rounded up as you add them.
Further Information
| Diameter (d) | d1 | a | b | e | h | t |
|---|---|---|---|---|---|---|
| M8 | 9.36-9.00 | 24.0-20.0 | 22.65-21.35 | 2.90 | 4.4-3.2 | 0.5 |
| M10 | 11.43-11.00 | 24.0-20.0 | 22.65-21.35 | 2.90 | 4.4-3.2 | 0.5 |
| M12 | 13.93-13.50 | 28.00-24.00 | 30.65-29.35 | 3.70 | 5.9-3.9 | 0.7 |
| M16 | 17.93-17.50 | 34.50-29.50 | 36.80-35.20 | 4.45 | 6.9-4.9 | 0.8 |
| M20 | 22.52-22.00 | 42.50-37.50 | 44.80-43.20 | 5.25 | 8.0-6.0 | 0.9 |
| M22 | 24.52-24.00 | 46.50-41.50 | 50.80-49.20 | 6.00 | 9.0-7.0 | 1.0 |
| M24 | 26.52-26.00 | 59.00-53.00 | 56.95-55.05 | 6.26 | 9.7-7.3 | 1.0 |
| M27 | 30.52-30.00 | 59.00-53.00 | 56.95-55.05 | 6.26 | 9.7-7.3 | 1.0 |
| M30 | * | * | * | * | * | * |
